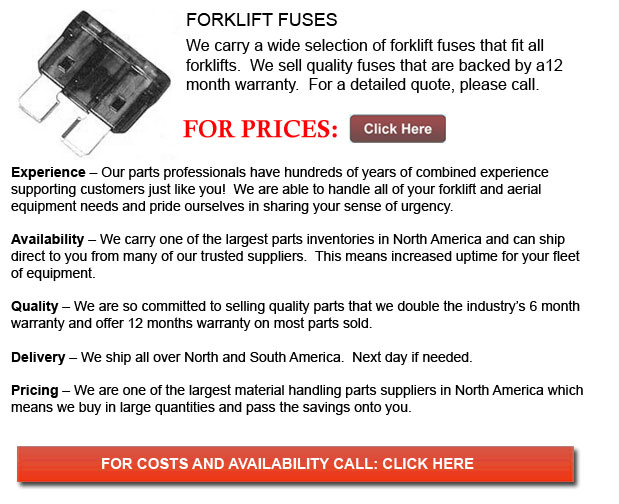

Fuse for Forklift

Forklift Fuses - A fuse comprises either a wire fuse element or a metal strip inside a small cross-section that are attached to circuit conductors. These devices are typically mounted between two electrical terminals and quite often the fuse is cased within a non-conducting and non-combustible housing. The fuse is arranged in series capable of carrying all the current passing throughout the protected circuit. The resistance of the element generates heat due to the current flow. The construction and the size of the element is empirically determined in order to be certain that the heat produced for a standard current does not cause the element to reach a high temperature. In instances where too high of a current flows, the element either rises to a higher temperature and melts a soldered joint inside the fuse which opens the circuit or it melts directly.

An electric arc forms between the un-melted ends of the element when the metal conductor components. The arc grows in length until the voltage needed so as to sustain the arc becomes higher compared to the obtainable voltage in the circuit. This is what truly results in the current flow to become terminated. When it comes to alternating current circuits, the current naturally reverses direction on each and every cycle. This particular method significantly improves the fuse interruption speed. When it comes to current-limiting fuses, the voltage required to sustain the arc builds up fast enough to really stop the fault current prior to the first peak of the AC waveform. This effect tremendously limits damage to downstream protected units.

Normally, the fuse element consists if silver, aluminum, zinc, copper or alloys that would offer stable and predictable characteristics. Ideally, the fuse will carry its rated current indefinitely and melt fast on a small excess. It is vital that the element must not become damaged by minor harmless surges of current, and must not change or oxidize its behavior following possible years of service.

The fuse elements may be shaped to increase the heating effect. In bigger fuses, the current can be divided amongst numerous metal strips, whereas a dual-element fuse may have metal strips which melt right away upon a short-circuit. This kind of fuse can even contain a low-melting solder joint which responds to long-term overload of low values compared to a short circuit. Fuse elements could be supported by nichrome or steel wires. This will make sure that no strain is placed on the element however a spring can be integrated to increase the speed of parting the element fragments.

The fuse element is normally surrounded by materials which work in order to speed up the quenching of the arc. Several examples include air, non-conducting liquids and silica sand.

Click to Download the pdf
